stirrer turret with lateral extraction

Files for downloading:

LATERAL EXTRACTION SHAFT:


Specially developed for large-capacity storage units, this shaft is designed so that the sealed cartridge (single or double mechanical seal) can easily be maintained without removing the guide head and the stirrer drive shaft, by simply pulling it out from the top of the shaft. This makes it a much simpler operation which can be completed in 2 hours on the owner’s site, without complicated lifting gear or the need to drain the storage unit (full vessel).

This technology can be installed on both vertical and lateral stirrers

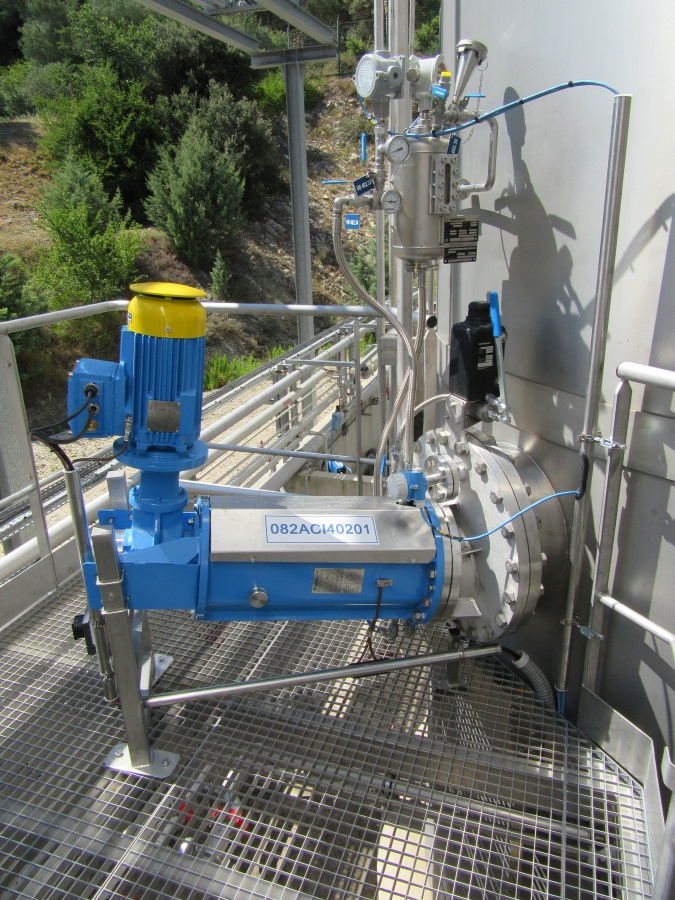

Side stirrer tank maintenance cartridge sealing

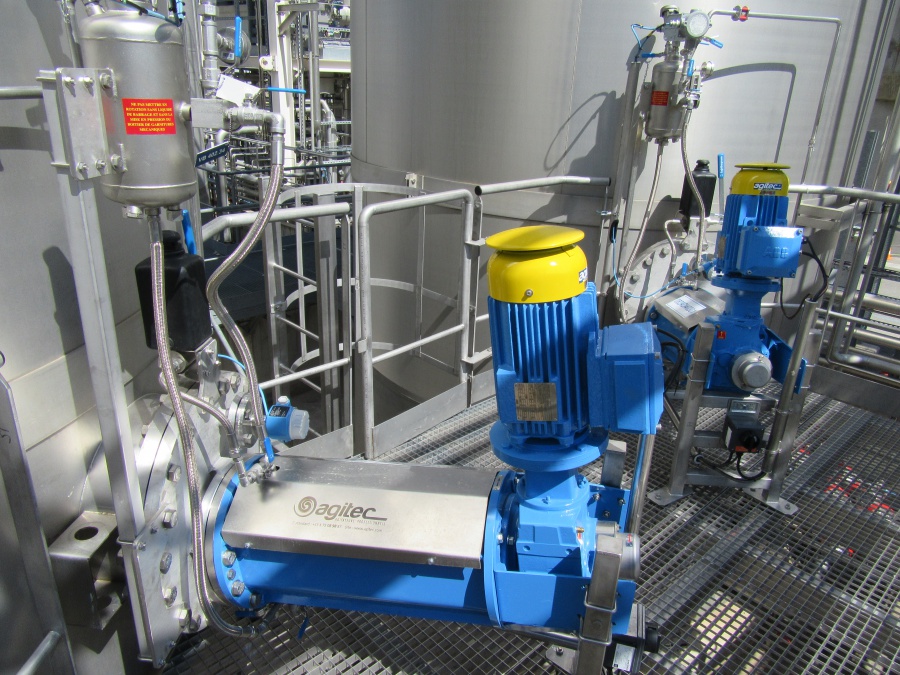

Lateral stirrer tank stock large capacity

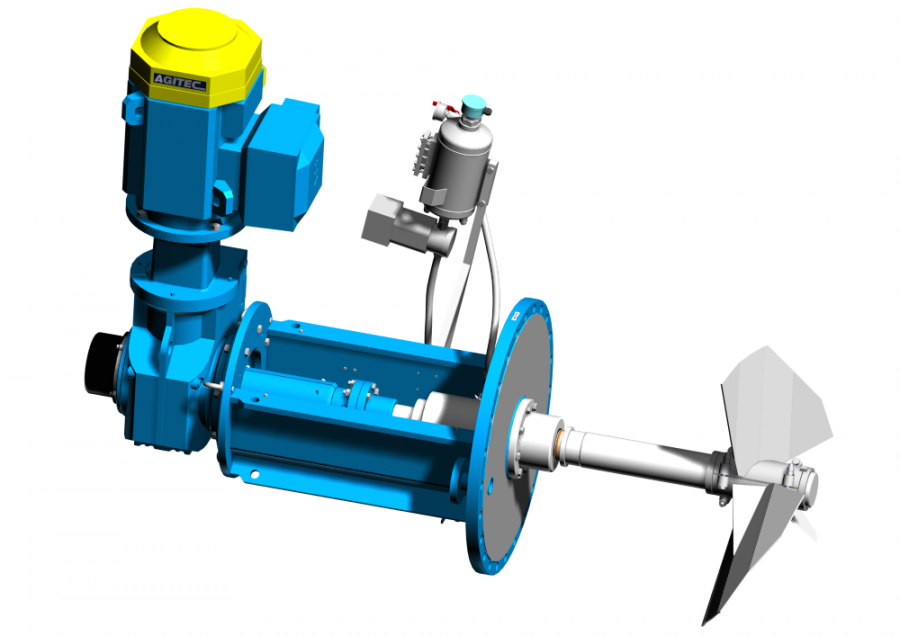

stirrer turret with lateral extraction
